Debugging (Failed) Instrumentation through sun.misc.Unsafe.defineAnonymousClass

defineAnonymousClass is a super handy method of the notorious sun.misc.Unsafe “escape hatch” in the JVM. defineAnonymousClass is used as a fast-path to define specialized anonymous classes which are not rigorously verified, are not loaded into a class loader (e.g. they exist only so long as you hold a reference to one, perhaps through an instance of an object of that type), and can have their constant pools lazily patched at load-time. For classes that do not need to be accessible from anywhere other than the class that defines them, defineAnonymousClass is a much faster way to load in a class. defineAnonymousClass is used under-the-hood to implement Lambdas, and we aggressively used it to implement CROCHET.

One fun side-effect of defineAnonymousClass’ performance tweaks is that when you break verification of a class loaded through defineAnonymosuClass (for instance, if you are instrumenting classes with a JavaAgent, perhaps with ASM), you get a totally useless error message:

This is not helpful. If you use a fastDebug build of OpenJDK, then you can use the flags “-XX:+UnlockDiagnosticVMOptions -XX:+VerboseVerification”, which will produce a lot of output, ending up with something like:

Which can be enough to point you to the method that’s failing verification to help you figure out what the cause of the error is (in this case, it’s that my instrumentation is adding a reference to a class not loaded in a class loader that is within the scope of the anonymous class being defined).

Debugging Java Bytecode Instrumentation

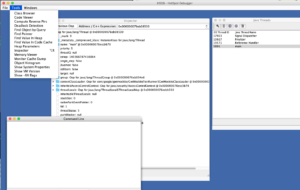

screenshot-2016-11-15-17-04-06If you’ve ever tried, or are planning to try instrumenting the JRE, and plan to instrument the entire JRE, you might have run up against some “fun” debugging challenges. For instance, you might have found out that it is possible to generate some bytecode that causes the JVM to produce a segmentation fault while starting. This can be really, really really annoying to debug if you aren’t aware of all of the great tools available. Here are some key tricks (going from most straightforward to least), all written down in one place. I’m aware that this isn’t so much of a how-to to use each of these approaches, as much as it is some pointers down the right path, as when I was trying to figure this all out I had a really tough time finding where to start.

ASM’s CheckClassAdapter

This handy ClassVisitor will do some basic verification of the bytecode you’re outputting. It won’t perform a COMPLETE verification (e.g. some code might pass it that still is wrong), but it will catch a lot, and it’s handy because you can delegate to it (before a ClassWriter, for instance), so you can see exactly where in your code is emiting the invalid code.

Remote Debugging

Do you appreciate the Eclipse debugger? Did you know that you can attach it to a remote process… for instance, one that you start in a crazy JVM with a ton of instrumentation? Yes, you can. This can be really helpful for simple debugging.

A copy-paste one-liner to have a JVM start up and wait for a debugger to connect on port 5005:

And, if you are debugging instrumentation in maven surefire/failsafe tests, you can set the flag -Dmaven.surefire.debug (or -Dmaven.failsafe.debug) when starting maven, and when tests start, it will first wait for the debugger to connect (on 5005).

“Fastdebug” build of OpenJDK

There are a ton of flags available to you when you use a special version of OpenJDK that was compiled with debug support enabled. You can get this by building OpenJDK yourself, and doing ./configure –enable-debug. If you’re on OS X and don’t want to go through the big ball of fun that is building OpenJDK 8 on Mac OS X, here’s a binary build that I made and use myself (1.8.0_71). My absolute #1 favorite flag that you’ll get is -XX:+TraceExceptions. This flag will print out EVERY exception that occurs in the JVM, even if it’s caught and squelched by an app, and yes, even if you are causing an exception while printing an exception (ugh definitely an unpleasant way to crash the JVM). Example:



You also get -XX:+TraceBytecodes which will dump EVERY single bytecode out to the console as it’s being executed.



Javap, Krakatau and verification

You’ve probably already figured javap out already: the tool included with Java that disassembles .class files and prints out the bytecode in text. Krakatau is an awesome tool written in python that does this too, but ALSO WILL VERIFY YOUR CODE AND PRINT OUT DETAILED MESSAGES (MUST use an old version, e.g. 3724c05ba11ff6913c01ecdfe4fde6a0f246e5db). Here’s where this comes in handy. Sometimes the JVM gives us really helpful VerifyErrors, like here:

From reading the error, we can probably figure out what’s going on, because we see exactly where the problem is: in class Test, method

That's really really unhelpful, because it turns out that this method, handleReplicate, is huge, and all that it tells us is that somewhere in this method, there’s an incompatible argument to a function. Why wouldn’t it give us all of the helpful information in this error that it does above (with the exact location, and expected stack frame)? We might try to do javap and look at this method and try to figure out what’s going on, but, there might be dozens or hundreds of call sites in it, and carefully inspecting each to see where the invalid call is is annoying.
Enter Krakatau: Instead of using javap to disassemble this class, let’s try using it:

Now, we know specifically which invocation was causing the problem (at bytecode offset 817 in that method), and what the stack and locals are at that point that the verifier is calculating. Then, we can look in our instrumentation and see why we are generating this invalid code.

Dragons not to mess with

If you’re trying to instrument every class, you’ll quickly find that there are some things that you just can’t touch. The JVM has hardcoded offsets to some fields of some classes (namely, Object, Short, Byte, Boolean, StackTraceElement, perhaps a few others), and if you instrument these classes and this changes the layout of these fields, you’ll have a bad day. You might get around this by storing whatever auxiliary data you wanted for these types using JVMTI Object Tagging, or a WeakHashMap. Moreover, there are SOME things that you can do to these classes (you can definitely get away with adding a single boolean or byte field to Byte, Boolean, Short and Character, for instance…).

What are your Java instrumentation tips?

Do you have any other debugging techniques for Java bytecode instrumentation? Feel free to share in comments below!
